PE1ITR-6 VHF RADIO PROPAGATION ALERT @ JO21QK


This system gives a radio propagation warning on VHF and higher when conditions are good from maidenhead locator JO21. Several different sources are monitored such as the DXCluster, FMLIST, Beacons, iono data, magnetometers. At present, the following warnings are supported: E-skip on 50, 70, 100 and 144MHz. Multi-hop Es or F2 on 50MHz. Tropo on 144 and 432MHz. Aurora on 50, 70 and 144MHz.
The core of the system is a MariaDB database. This database is mainly powered by the excellent live muf v7 software by G7RAU. On top of this a lot of home written software for analyses and the alert system. Alerts are send by Email, SMS, Twitter, APRS, DMR and POCSAG (DAPNET) 439.9875MHz.
The system has been continuously running since 2006. This system is not primarily intended to be a 24/7 service for others, but it's more for me and friends to gain more understanding of radio propagation and fun working DX on VHF. If you want to be on the list for an alert message by email, aprs, dmr or pocsag pager this is of course possible. Please send me an email. Note: The best way to work DX is ALWAYS to be qrv.....

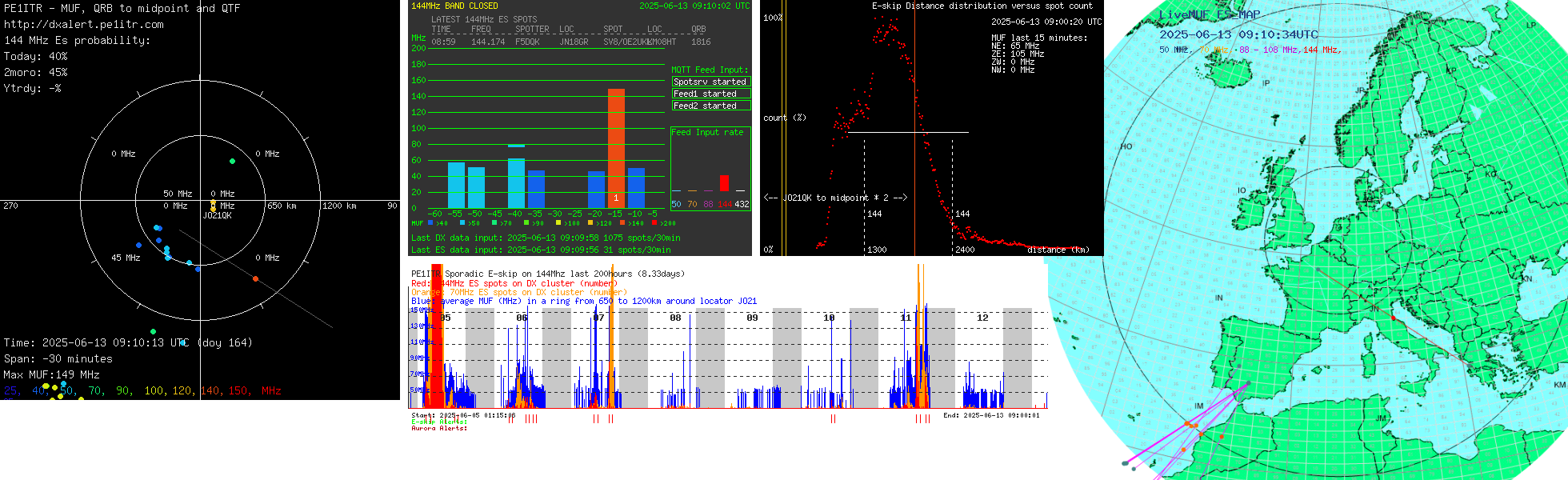

144 MHz E-Skip

PE1ITR 144Mhz ES
explanation
PE1ITR MUF ALERT AT JO21QK - Powered by G7RAU live muf v7 software
QRB between 2 stations - Rob Hardenberg PE1ITR
PE1ITR 144Mhz ES History


Radio Propagation Warning Messages


The system sends warning messages when radio propagation is good. These messages can be received in the following ways:

DAPNET PAGER NETWORK All messages are sent to RIC number "1029" in the DL, PA, ON and LX area. Program this RIC as an extra RIC in your pager. Skyper Pagers users can subscribe to the "vhf_dxalerts" section. It is also possible to receive a customized private message on your own RIC but then you have to contact me.
Telegram Subscribe in the Telegram app to the group "vhf_dxalerts".
Twitter Alert message for 50, 70, 144MHz E-skip and Aurora, 50MHz F2/Es Multihop, 70, 144 and 432MHz tropo on twitter
Hobbyscoop Mattermost Look into the dxcluster channel of this chat service.




Links



Es: ES MAP EU ES MAP USA
Tr: TR MAP EU Microwave Tropo 10GHz WebSDR
2.3GHz WebSDR
F5LEN tropo forecasts dxinfocentre tropo
Au: AU MAP EU MAGNETOMETER
Div: Alert History DX-CLUSTER HOME dx spots latest dx spots latest 40 MHz the DXrobot PE1NWL



Aurora
